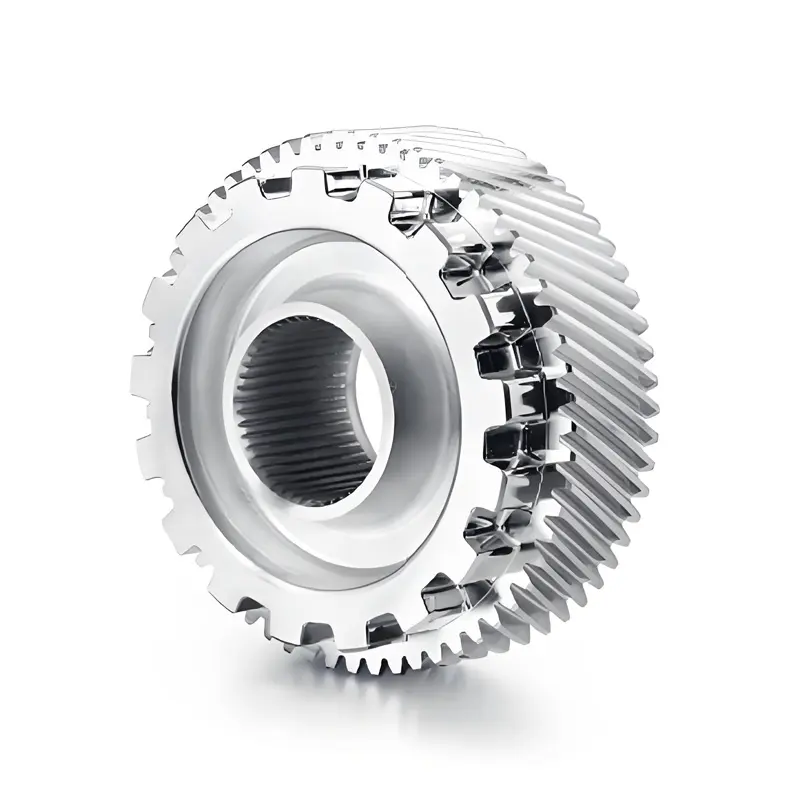

Parking End Gear – High Precision Gear for EV | DD Gear
Product Details
FAQ
Features & Benefits
- High-precision tooth pitch for reliable locking
Accurate tooth pitch and controlled runout help the parking pawl engage securely with the parking end gear, reducing the risk of partial engagement and ensuring stable locking performance. - Strong tooth root and impact resistance
Parking gears can experience high local loads and occasional shocks when the vehicle is parked on an incline. Optimized tooth root fillets, proper case depth, and tough core hardness help the gear resist chipping and plastic deformation. - Tailored materials and heat treatment
Typical options include carburizing steels (e.g. 16MnCr5 / 20CrMnTi equivalents) or alloy steels for quench-and-temper. Surface hardness, effective case depth, and core hardness are defined according to parking load, maximum vehicle mass, and safety factors. - Compact, easy-to-integrate geometry
The parking end gear can be designed as a separate gear or as part of the output shaft assembly. Small module teeth and optimized hub/bolt patterns support tight packaging inside EV transmissions and e-axles. - Stable performance over the whole vehicle life
Controlled heat treatment, residual stress, and surface finish help the parking end gear maintain tooth strength and dimensional stability over many years of service, even under repeated parking cycles. - From prototypes to series production
DD Gear can provide rapid prototypes for gearbox validation and then move into controlled mass production with documentation, traceability, and consistent quality.
Technical Specifications
Final data will be defined according to the customer’s drawing and EV duty cycle.
| Item | Typical Option |
| Gear Type | Parking end gear / parking lock gear (separate gear or integrated on shaft) |
| Module (m) | 0.8 – 4.0 (small to medium module for parking gears) |
| Number of Teeth | Defined by locking mechanism design (custom) |
| Pressure Angle | 20° or per customer standard |
| Material | Carburizing steels (e.g. 16MnCr5 / 20CrMnTi), alloy steels for Q&T, other automotive steels on request |
| Heat Treatment |
Carburizing & quenching, nitriding, or Q&T, depending on load and safety targets |
| Surface Hardness | Typically 58–62 HRC (carburized) or per drawing |
| Accuracy | Automotive-grade accuracy per ISO / DIN (class defined with customer) |
Applications
-
EV transmissions with parking lock function
Parking end gears mounted on the output side of single-speed or multi-speed EV gearboxes, used to lock the driveline when the vehicle is in “P” position. -
E-axles and integrated drive units
Parking gears integrated into compact e-axles for passenger cars and light commercial vehicles, where space is limited and system safety requirements are high. -
Hybrid transmissions and dedicated hybrid transmissions (DHT)
Parking gears used in hybrid gearboxes that combine engine and e-motor power, requiring robust tooth strength and compatibility with existing transmission layouts. -
Electric light trucks and special-purpose vehicles
Parking end gears for electric logistics trucks, shuttle buses, and off-highway EVs where parking on slopes and with heavy loads is common.
Gear Manufacturing Process
Every parking end gear is produced under a controlled gear manufacturing route designed for precision and durability. A typical process flow is:
-
Forging or bar cutting of gear blanks
-
Lathe machining of bores, hubs, and reference surfaces
-
Hobbing or shaping of gear teeth
-
Drilling, milling, and other CNC machining operations
-
Heat treatment (such as carburizing, quenching, tempering, nitriding)
-
Shot blasting and stress relief as required
-
Finish machining and grinding of critical mounting surfaces
-
Gear grinding (profile or worm grinding) where accuracy demands it
-
Cleaning and rust prevention treatment
-
Final inspection and packaging for shipment
Precision Gear Customization Process
To support custom parking end gear projects, DD Gear follows a clear, nine-step customization process:
Step 1 – Requirement Collection
Customers provide design requirements, 2D drawings, 3D models, or physical samples, together with basic duty cycle information (torque, speed, life, installation).
Step 2 – Drawing Design & Optimization
Based on the provided drawings or samples, DD Gear prepares or optimizes detailed manufacturing drawings and shares them with the customer for confirmation.
Step 3 – Quotation
After the drawings and technical points are confirmed, we issue a precise quotation covering tooling, piece price, lead time, and quality requirements.
Step 4 – Tooling & Fixture Preparation
Once the price is confirmed, we arrange tooling and fixture production. Any tooling cost is agreed with the customer in advance and can be offset or refunded after mass orders, according to the commercial agreement.
Step 5 – First Sample Approval
After tooling and fixtures are ready, we manufacture the first sample batch—typically within about 30 days—and ship it to the customer for testing.The customer inspects and validates the samples in their gearbox or test bench and provides feedback on dimensions, performance, and any required adjustments.
Step 6 – Mass Production
When the sample is approved, we start mass production according to the agreed production plan and quality standards.
Step 7 – Finished Product Inspection
After production, we inspect hardness, dimensions, runout, tooth accuracy, and other critical characteristics to ensure full compliance with the drawing and standards.
Step 8 – Shipping Arrangement
Once inspection is passed and shipment is approved by the customer, we arrange booking, packaging, and delivery to the specified destination.
Quality Assurance & Inspection
DD Gear applies the same quality philosophy to all precision gears:
-
Quality management systems based on ISO 9001 and IATF 16949
-
Process control from incoming material to final inspection, including:
-
Material certification and chemical composition checks
-
Hardness and case depth verification after heat treatment
-
Gear measurement for profile, lead, pitch, and runout
-
Surface roughness testing on gear flanks and journals
-
Dimensional inspection with calibrated gauges and CMMs
-
-
Traceability for each batch with inspection records and reports
- Optional documentation such as PPAP/FAIR packs on request
Packaging
Usage & Installation Notes
-
Ensure the parking end gear is correctly positioned on the output shaft or flange according to the drawing, with proper fits and fastening torque.
-
Confirm that the parking pawl engages fully with the parking gear teeth in the “P” position, and that clearance and backlash are within the design window.
-
Do not use the parking function to stop a moving vehicle; engagement should only occur when the vehicle is stationary, as defined by the OEM’s safety procedures.
-
Use the specified lubricant and maintain oil level and cleanliness inside the gearbox or e-axle housing.
-
During maintenance, check tooth flanks and roots for signs of chipping, pitting, or plastic deformation, especially on vehicles frequently parked on steep slopes.
-
Store finished parts in dry, clean conditions with anti-rust protection and avoid impact on teeth and mounting surfaces.
Company Strength – DD Gear
-
Specialized in small module, high-precision gears and shafts for EVs, humanoid robots, AGVs, and intelligent automation.
-
Integrated manufacturing from forging and machining to heat treatment and gear grinding.
-
Quality systems aligned with automotive standards, with experience supporting OEM and Tier 1 projects.
-
Engineering support covering concept feasibility, DFM reviews, and failure analysis feedback.
-
Global export capability with experience serving customers in multiple countries.
Q1: What information do you need for a parking end gear quotation?
We normally need 2D drawings (PDF), 3D models (STEP/IGES if available), material and heat treatment requirements, expected annual volume, and basic application data such as vehicle type, maximum parking load, and safety factors.
Q2: Can you help us optimize the parking end gear design?
Yes. Our engineering team can review your duty cycle and layout and provide suggestions on module, tooth count, tooth root fillets, material, and heat treatment windows to balance safety, durability, and cost.
Q3: What lead time should we expect for prototypes and production?
Prototype parking end gears are usually available in around 2–3 weeks after final drawing confirmation and tooling readiness. Mass production lead time depends on quantity and process route and will be confirmed during quotation.
Q4: Do you also supply the parking pawl or only the gear?
DD Gear specializes in precision gears, shafts, and related components. We typically supply the parking end gear and other gears; the parking pawl and mechanism are usually designed and produced by the customer or their system partners.
Q5: What accuracy levels can you achieve on parking end gears?
Gear accuracy levels are defined together with the customer according to locking mechanism requirements. We work to ISO / DIN standards and can achieve automotive-grade accuracy with ground teeth when required.
Q6: What is your typical MOQ for parking end gears?
MOQ depends on the complexity of the part and tooling. We support flexible MOQ for development and pilot builds, then align batch sizes with your SOP/series production plan.
Q7: Can you provide inspection reports with each batch?
Yes. Dimensional inspection reports, gear measurement charts, hardness and case-depth records, and other documents can be provided according to your requirements
