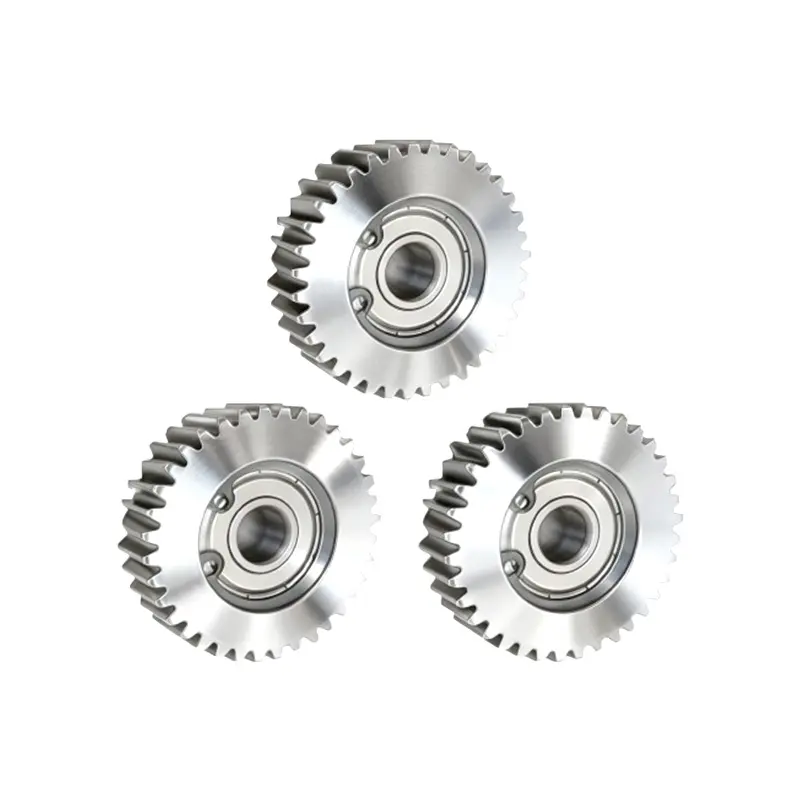

Features & Benefits
Technical Specifications
Final data will be defined according to the customer’s drawing and sample.
| Item | Typical Option |
| Gear Type | Spur and helical gears for parallel-shaft reductions; planetary gear components(sun/planet/ring)for hub motors or compact mid-drives; gear shafts with integral gears; optional bevel gears where shaft direction changes are required |
| Module (m) | Small- to medium-module gears sized for two-wheelers |
| Material | Case-hardening steels (such as 16MnCr5, 20CrMnTi, 18CrNiMo series and other equivalent grades), through-hardening alloys (such as 40Cr, 42CrMo series), and nitriding steels; the specific selection is determined based on torque, service life, and cost targets |
| Heat Treatment |
Carburizing & quenching, nitriding, induction hardening, or quench & temper, select according to torque, lifespan, and noise requirements |
| Surface Hardness | For carburized or induction hardened gears, the core toughness is typically in the range of approximately 58–62 HRC, or as specified in the drawings; core toughness is controlled based on peak torque and impact load |
| Surface Finish | The tooth surfaces can be ground or finished according to NVH requirements to reduce meshing noise and improve contact patterns; key journals and mating surfaces are controlled according to runout and roughness requirements |
| Accuracy | Spur/helical gears are manufactured according to cylindrical gear precision standards such as ISO 1328, DIN, and AGMA; the specific grade (e.g., medium to high grade) is determined by a balance between noise, load, and cost |
Applications
E-Motorcycle Gears from DD Gear can be tailored to a variety of EV two-wheeler drivetrains, for example:
Gear Manufacturing Process
Every e-motorcycle gear is produced under a controlled gear manufacturing route designed for precision and durability. A typical process flow is:
Forging or bar cutting of gear blanks
Lathe machining of gear diameters and reference surfaces
Hobbing or shaping of gear teeth
Drilling, milling, and other CNC machining operations
Heat treatment (such as carburizing, quenching, tempering, nitriding)
Shot blasting and stress relief as required
Finish machining and grinding of journals and critical surfaces
Gear grinding (profile or worm grinding) where accuracy demands it
Cleaning and rust prevention treatment
Final inspection and packaging for shipment
Precision Gear Customization Process
To support custom e-motorcycle gear projects, DD Gear follows a clear, eight-step customization process:
Step 1 – Requirement Collection
Customers provide design requirements, 2D drawings, 3D models, or physical samples, together with basic duty cycle information (torque, speed, life, installation).
Step 2 – Drawing Design & Optimization
Based on the provided drawings or samples, DD Gear prepares or optimizes detailed manufacturing drawings and shares them with the customer for confirmation.
Step 3 – Quotation
After the drawings and technical points are confirmed, we issue a precise quotation covering tooling, piece price, lead time, and quality requirements.
Step 4 – Tooling & Fixture Preparation
Once the price is confirmed, we arrange tooling and fixture production. Any tooling cost is agreed with the customer in advance and can be offset or refunded after mass orders, according to the commercial agreement.
Step 5 – First Sample Approval
After tooling and fixtures are ready, we manufacture the first sample batch—typically within about 30 days—and ship it to the customer for testing.The customer inspects and validates the samples in their gearbox or test bench and provides feedback on dimensions, performance, and any required adjustments.
Step 6 – Mass Production
When the sample is approved, we start mass production according to the agreed production plan and quality standards.
Step 7 – Finished Product Inspection
After production, we inspect hardness, dimensions, runout, tooth accuracy, and other critical characteristics to ensure full compliance with the drawing and standards.
Step 8 – Shipping Arrangement
Once inspection is passed and shipment is approved by the customer, we arrange booking, packaging, and delivery to the specified destination.
Quality Assurance & Inspection
DD Gear applies the same quality philosophy to e-motorcycle gear and all precision gears:
Quality management systems based on ISO 9001 and IATF 16949
Process control from incoming material to final inspection, including:
Material certification and chemical composition checks
Hardness and case depth verification after heat treatment
Gear measurement for profile, lead, pitch, and runout
Surface roughness testing on gear flanks and journals
Dimensional inspection with calibrated gauges and CMMs
Traceability for each batch with inspection records and reports
Packaging
Usage & Installation Notes
Company Strength – DD Gear
Specialized in small module, high-precision gears and shafts for EVs, humanoid robots, AGVs, and intelligent automation.
Integrated manufacturing from forging and machining to heat treatment and gear grinding.
Quality systems aligned with automotive standards, with experience supporting OEM and Tier 1 projects.
Engineering support covering concept feasibility, DFM reviews, and failure analysis feedback.
Global export capability with experience serving customers in multiple countries.
Q1: What information do you need to quote E-Motorcycle Gears?
We typically need: drivetrain layout (hub motor / mid-drive / other), 2D drawings and preferably 3D models, gear type (spur/helical/planetary components/gear shafts), module and tooth data, materials and heat-treatment requirements, motor speed and torque, wheel size and target vehicle speed, duty cycle, lubrication concept and annual volume.
Q2: Do most electric motorcycles need multi-speed gearboxes?
Most small and medium electric two-wheelers use single-speed reductions, because electric motors deliver a broad torque range and can be controlled electronically. A small number of high-performance projects explore multi-speed transmissions, but the majority of applications focus on optimizing a single gear ratio for efficiency, acceleration and top speed.
Q3: Should we use spur, helical or planetary gears in our design?
Spur gears are simple and efficient and work well for many mid-drive reductions. Helical gears offer smoother, quieter operation and higher load capacity but introduce axial thrust. Planetary gears are well suited to compact hub-motor reductions and high overall ratios in limited space. The right choice depends on your packaging, NVH, cost and manufacturing strategy.
Q4: Can DD Gear supply complete hub motors or gearboxes?
DD Gear acts as a component supplier. We manufacture gears, gear shafts and related components according to your drawings. Complete hub motors, gearboxes and fully assembled vehicles are designed and assembled by the E-motorcycle OEM or system integrator.
Q5: How can we address gear noise in quiet electric drivetrains?
Gear noise can be reduced by combining appropriate tooth geometry, accuracy levels, surface finish, lubrication and housing stiffness. DD Gear can support with manufacturability-oriented feedback on tooth modifications and tolerance schemes, but final NVH performance must be validated in the full drivetrain and vehicle.
