Custom Precision Gears for Packaging Machinery | DD Gear

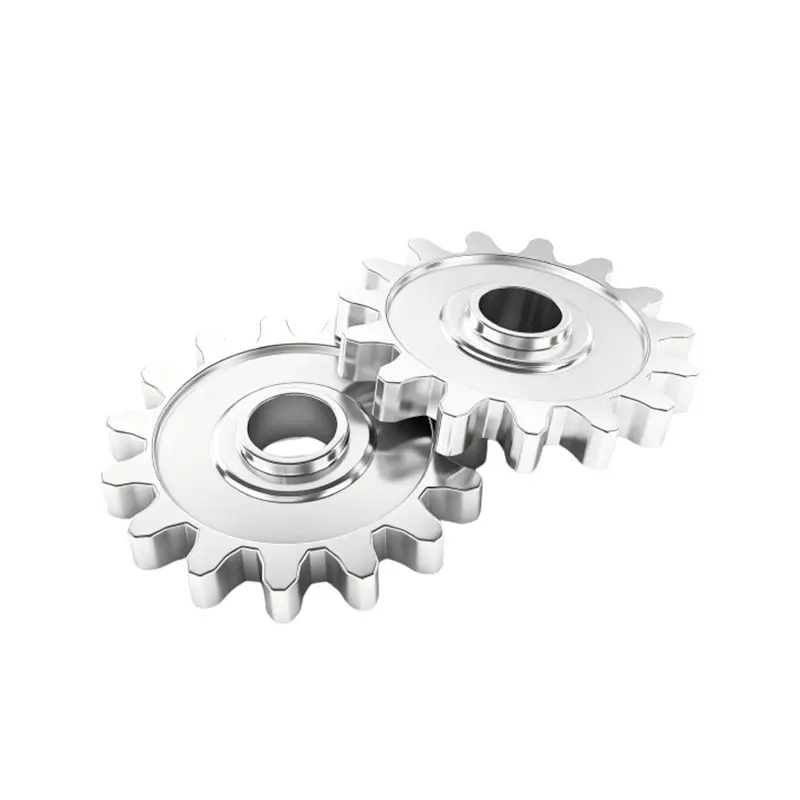

Features & Benefits

• Designed for high-speed, synchronized motion:
  Gears and gear shafts are engineered to maintain precise ratios and phase relationships between film feed, sealing, cutting, infeed and outfeed, supporting accurate registration and repeatable packaging quality.

• Low noise and vibration in packaging halls:
  Precision spur and helical gears with optimized tooth geometry and surface finish help reduce noise and vibration, improving operator comfort and overall line behavior, especially in high-speed FFS, cartoning and labeling applications.

• Small-module precision for indexing and timing:
  Tight control of tooth profile, pitch and backlash supports accurate indexing of rotary knives, sealing jaws, star wheels and product carriers, reducing defects and rejects.

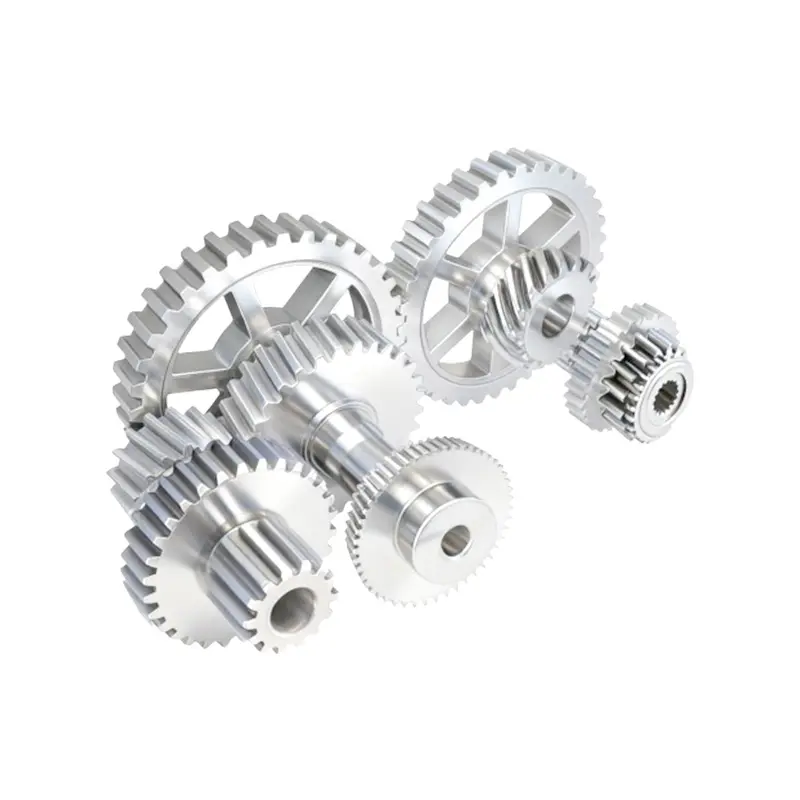

• Flexible gear types for different machine sections:
  Support for spur, helical, bevel and worm gears, as well as gear shafts and internal gears, allows DD Gear to serve form-fill-seal modules, cartoners, case packers, palletizers, conveyors and auxiliary drives within the same line.

• Material and surface options for challenging environments:
  Case-hardened alloy steels and nitriding steels provide wear resistance and fatigue strength; stainless or corrosion-resistant grades are available for washdown or food-contact-adjacent areas; engineering plastics may be used in low-load, low-noise stages when appropriate.

• Support for OEM designs and retrofit projects:
  DD Gear can support new machine platforms with prototype-to-series supply, and also manufacture replacement gears based on existing drawings or measured samples as part of line upgrades and modernization programs.

Technical Specifications

Final data will be defined according to the customer’s drawing and sample.

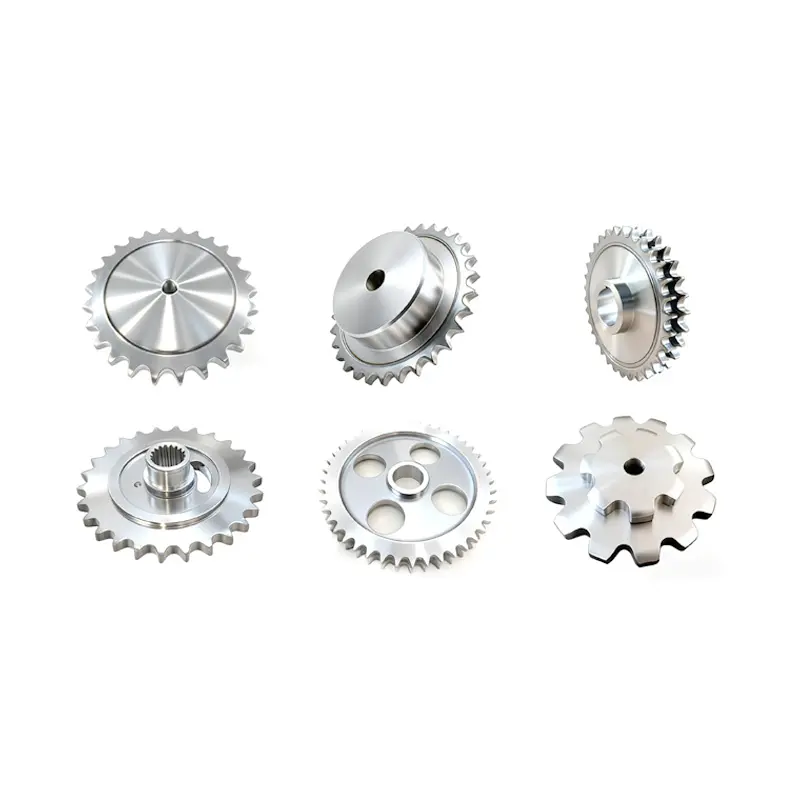

Applications

Packaging Machinery Gears from DD Gear can be configured for many sections of a packaging line, for example:

• Form-Fill-Seal (FFS) modules – Gears driving film feed rollers, forming shoulders, sealing jaws and cutting units in vertical and horizontal FFS machines.

• Cartoners and case packers – Spur and helical gears for carton erection, product loading, closing and case forming sections, including timing gears for star wheels and transfer devices.

• Labeling and coding equipment – Small-module gears in label applicators, print-and-apply heads and inspection winders, where positional repeatability and low vibration are important.

• Conveyors and accumulation systems – Gears for drive and transfer shafts in belt, chain and roller conveyors, feeding products between processing and packaging steps.

• Palletizers and secondary packaging – Gears and gear shafts in lifting, rotating and transfer mechanisms used to handle cartons, trays and pallets.

Gear Manufacturing Process

DD Gear applies a controlled gear-manufacturing process suitable for small- to medium-module packaging gears：

1. Blank preparation – Selection of bar or forged blanks; cutting and rough turning to prepare reference surfaces.

2. Turning & pre-machining – Machining of bores, shoulders and reference faces with allowance for heat treatment and finishing.

3. Gear cutting – Hobbing or shaping of spur and helical gears; bevel and worm gears produced on suitable gear-cutting or multi-axis equipment as required.

4. Heat treatment – Carburizing, nitriding, induction hardening or quench & temper according to specified hardness and case-depth targets, with attention to distortion control.

5. Finish machining – Finish turning/grinding of bores, journals and reference faces to achieve fit and runout requirements.

6. Gear finishing (when required) – Gear grinding or honing to improve accuracy, noise behavior and load distribution in critical high-speed stages.

7. Deburring & surface conditioning – Chamfering and removal of burrs to reduce stress concentration and limit contamination risks from loose particles.

8. Cleaning, protection & packaging – Cleaning and rust prevention; packaging adapted to the customer’s assembly flow, cleanliness and storage conditions.

Precision Gear Customization Process

To support custom packaging machinery gear projects, DD Gear follows a clear, eight-step customization process:

Step 1 – Requirement Collection
Customers provide design requirements, 2D drawings, 3D models, or physical samples, together with basic duty cycle information (torque, speed, life, installation).

Step 2 – Drawing Design & Optimization
Based on the provided drawings or samples, DD Gear prepares or optimizes detailed manufacturing drawings and shares them with the customer for confirmation.

Step 3 – Quotation
After the drawings and technical points are confirmed, we issue a precise quotation covering tooling, piece price, lead time, and quality requirements.

Step 4 – Tooling & Fixture Preparation
Once the price is confirmed, we arrange tooling and fixture production. Any tooling cost is agreed with the customer in advance and can be offset or refunded after mass orders, according to the commercial agreement.

Step 5 – First Sample Approval
After tooling and fixtures are ready, we manufacture the first sample batch—typically within about 30 days—and ship it to the customer for testing.The customer inspects and validates the samples in their gearbox or test bench and provides feedback on dimensions, performance, and any required adjustments.

Step 6 – Mass Production
When the sample is approved, we start mass production according to the agreed production plan and quality standards.

Step 7 – Finished Product Inspection
After production, we inspect hardness, dimensions, runout, tooth accuracy, and other critical characteristics to ensure full compliance with the drawing and standards.

Step 8 – Shipping Arrangement
Once inspection is passed and shipment is approved by the customer, we arrange booking, packaging, and delivery to the specified destination.

Quality Assurance & Inspection

DD Gear applies the same quality philosophy to packaging machinery gear and all precision gears:

• Quality management systems based on ISO 9001 and IATF 16949

• Process control from incoming material to final inspection, including:

  • Material certification and chemical composition checks

  • Hardness and case depth verification after heat treatment

  • Gear measurement for profile, lead, pitch, and runout

  • Surface roughness testing on gear flanks and journals

  • Dimensional inspection with calibrated gauges and CMMs

• Traceability for each batch with inspection records and reports

• Optional documentation such as PPAP/FAIR packs on request

Packaging

Usage & Installation Notes

• Maintain shaft alignment and housing stiffness according to machine design; misalignment increases noise and wear and can impact registration and seal quality.

• Use specified fits and tightening torques for mounting gears and gear shafts; avoid forcing parts outside tolerance ranges.

• Follow recommended lubricants and lubrication systems, paying special attention to cleanliness and compatibility with packaging materials and, where relevant, food or pharmaceutical products.

• Implement regular inspection intervals for tooth wear, pitting, backlash growth and changes in noise, especially in high-speed sections like FFS modules and cartoners.

• Protect gears from corrosion and contamination during storage and handling before assembly, particularly in washdown or humid environments.

Company Strength – DD Gear

• Specialized in small module, high-precision gears and shafts for EVs, humanoid robots, AGVs, and intelligent automation.

• Integrated manufacturing from forging and machining to heat treatment and gear grinding.

• Quality systems aligned with automotive standards, with experience supporting OEM and Tier 1 projects.

• Engineering support covering concept feasibility, DFM reviews, and failure analysis feedback.

• Global export capability with experience serving customers in multiple countries.

Q1: What information do you need to quote Packaging Machinery Gears?
We normally require: machine type and section (FFS, cartoner, case packer, conveyor, etc.), 2D drawings and preferably 3D models, gear type (spur/helical/bevel/worm/internal/gear shaft), module and tooth data, materials and heat-treatment requirements, operating speeds and loads, duty cycle, environmental conditions (e.g. washdown, food-related) and expected annual volume.

Q2: Can you help optimize gears for smoother operation and lower defects?
Within the scope of your design, we can provide feedback on tooth accuracy, material/heat treatment, backlash and tooth modifications to help reduce noise and vibration and support stable synchronization. Final validation of packaging quality and defect rates must be performed in your complete machine and line.

Q3: Do you supply complete packaging machines or gearboxes?
No. DD Gear is a precision gear and shaft supplier. We provide gears, gear shafts and related components according to your drawings. Complete gearboxes, machines and lines are designed and assembled by the packaging OEM or system integrator.

Q4: Can you produce replacement gears for existing packaging lines?
If you can provide accurate drawings, 3D data or physical samples for measurement, we can typically manufacture replacement gears to match your required dimensions and performance targets as part of maintenance, retrofit or line upgrade programs.

Q5: How do you handle hygiene and washdown requirements?
We can recommend suitable materials and basic surface/heat-treatment options (e.g. stainless or corrosion-resistant steels) at the component level. However, overall hygiene, washdown design, guarding and choice of food-grade lubricants must be defined and validated by the machine designer and end user.
